Build and Deploy a Dashboard with Streamlit

With the launch of Streamlit, developing a dashboard for your machine learning solution has been made incredibly easy.

Streamlit is an open source app framework specifically designed for ML engineers working with Python. It allows you to create a stunning looking application with only a few lines of code.

I want to take this opportunity to demonstrate the apps you can build using Streamlit. But mostly, to show you the steps necessary to bring your application into production using Heroku.

1. Streamlit

A few of the advantages of using Streamlit tools like Dash and Flask: * It embraces Python scripting; No HTML knowledge is needed! * Less code is needed to create a beautiful application * No callbacks are needed since widgets are treated as variables * Data caching simplifies and speeds up computation pipelines.

Have a look at this post which might help you understand the architecture of Streamlit. Moreover, this post

Installation

Streamlit can easily be installed with the following command:

python pip install streamlit Use the following command to see a demonstration of an application with example code:

python streamlit hello

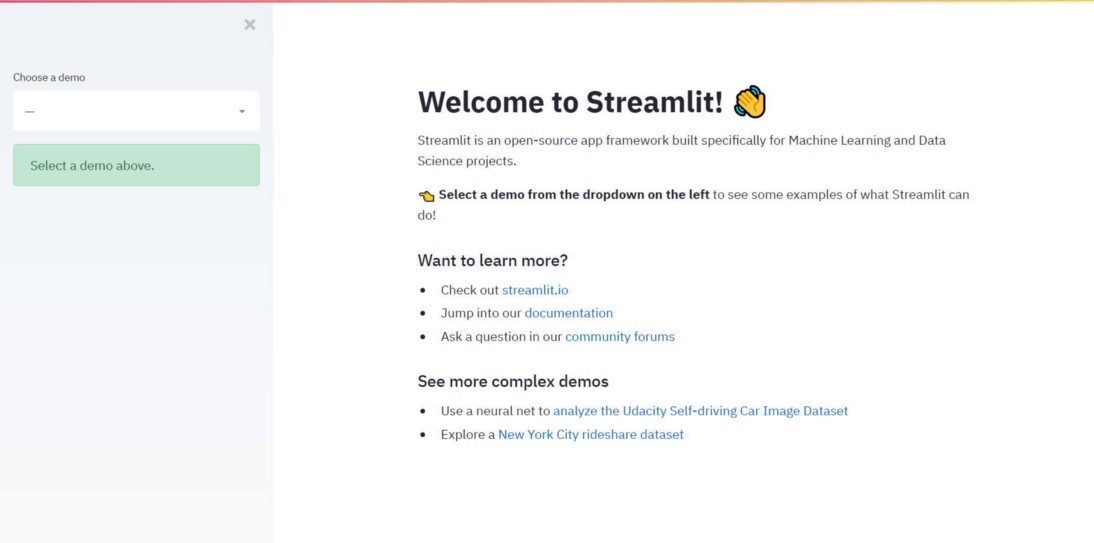

Doing this will result in the following page to be opened:

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\welcome.jpeg" description="" %}

2. Demos

Above from the streamlit hello demo above there are a few more complex demos available online for you to try out. I will list a few (including mine) below such that you will have an idea of the possibilities:

The Udacity Self-driving Car Image Browser

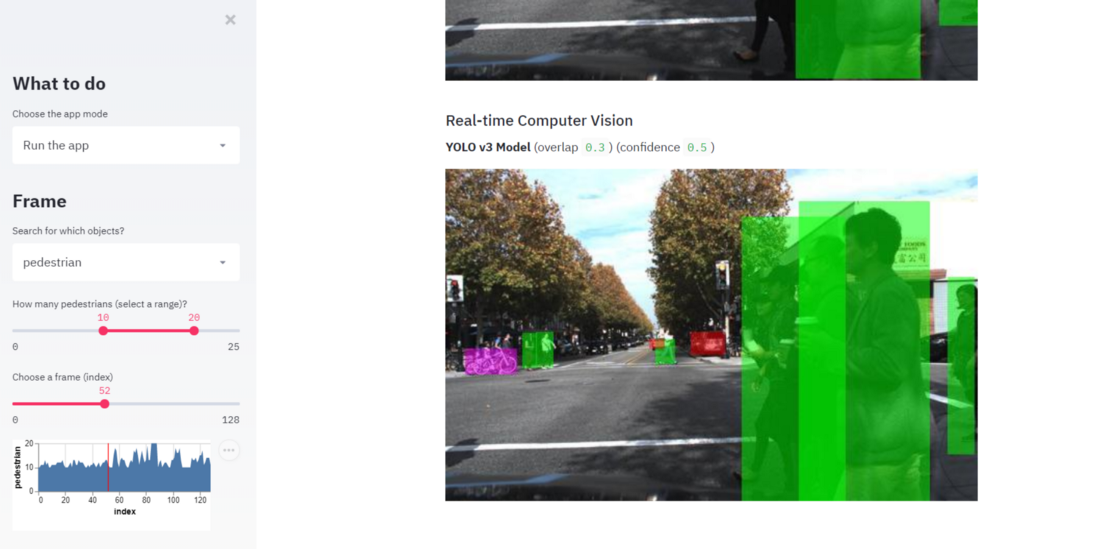

This demo shows how the Udacity car dataset can be combined with object detection in less than 300 lines of code to create a complete Streamlit Demo app.

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\demo.png" description="" %}

First, install OpenCV so that the images can be analyzed:

pip install --upgrade streamlit opencv-python

Next, simply run the app:

streamlit run https://raw.githubusercontent.com/streamlit/demo-self-driving/master/app.py

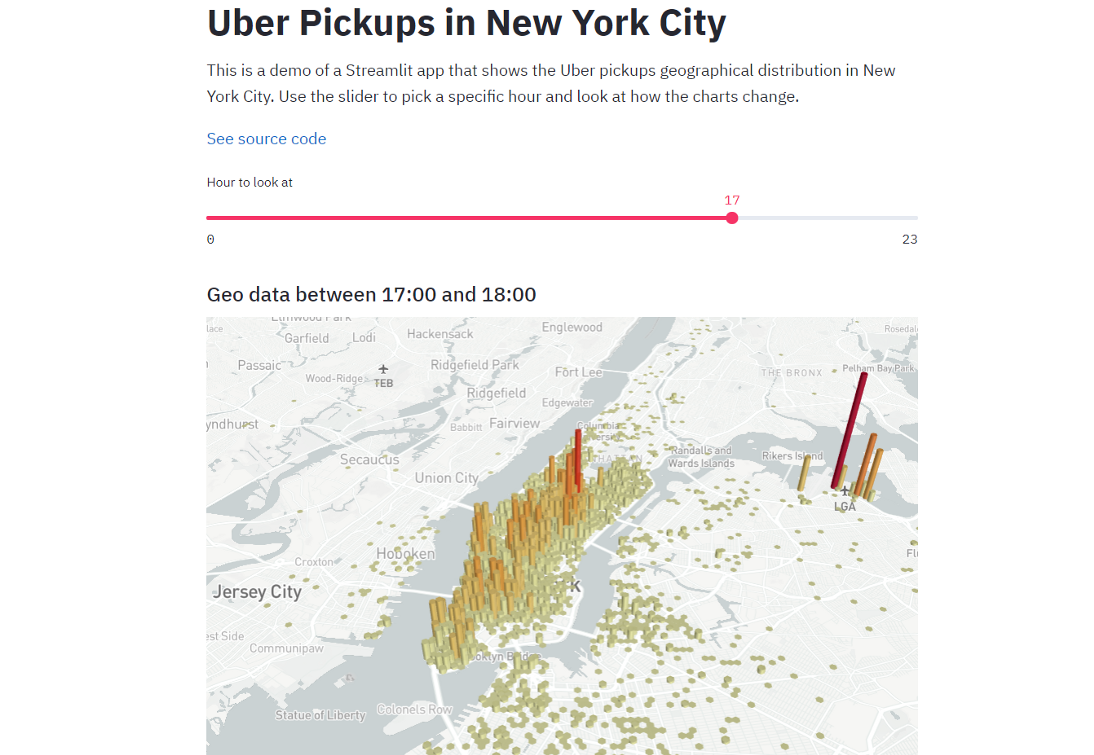

Uber Pickups in New York City

This is a Streamlit demo to show how you can interactively visualize Uber pickups in New York City.

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\uber.png" description="" %}

Simply run the code below after installing Streamlit:

streamlit run https://raw.githubusercontent.com/streamlit/demo-uber-nyc-pickups/master/app.py

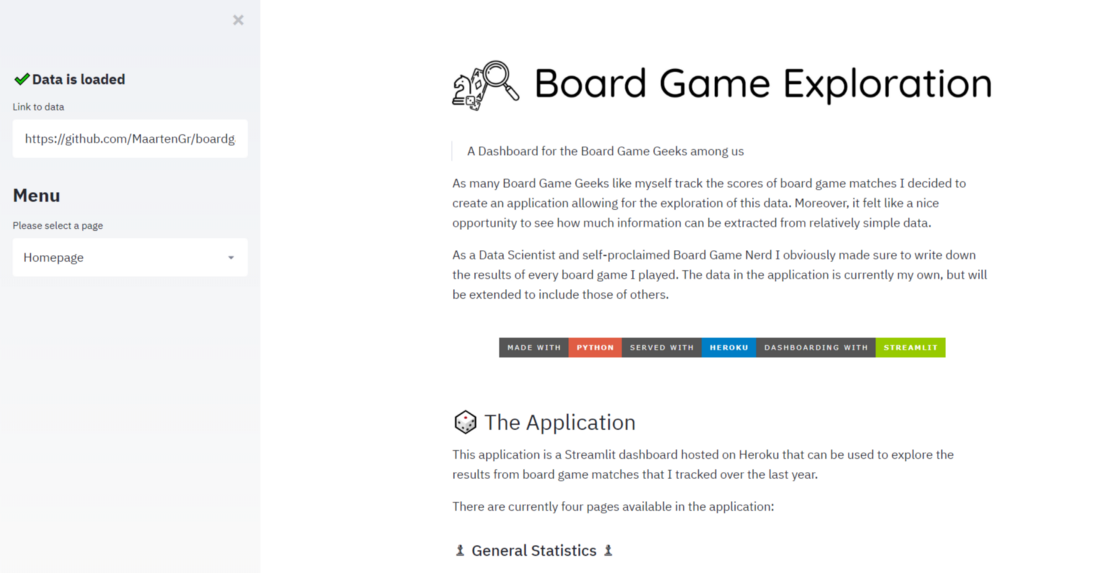

Board Game Exploration

As many Board Game Geeks like myself track the scores of board game matches I decided to create an application allowing for the exploration of this data. You can view this application live here, or you can run it locally by following the steps below.

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\board.png" description="" %}

Since I make use of several.py files, you first need to clone the repository:

git clone https://github.com/MaartenGr/boardgame.git BoardGame

Then, simply go to the folder and run Streamlit:

cd BoardGame
streamlit run app.py

NOTE: You can use your own data if you like by simply providing the URL to your data.

3. Creating an Application

In this section, I will demonstrate how to create a simple application seeing as the main purpose of this post is to prepare your project for deployment.

If you want more in-depth examples check out Streamlits API or check this or this post which nicely describes many of its features.

But first, let me introduce some basic features that you are likely to be using in your own apps.

Selection Widgets

One of the main features of Streamlit is the usage of widgets. There are many widgets available including the following:

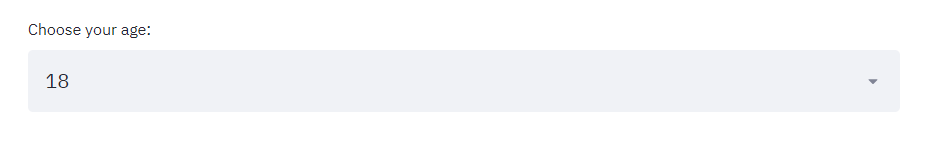

  • SelectBox
age = streamlit.selectbox("Choose your age: ", np.arange(18, 66, 1))

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\age.png" description="" %}

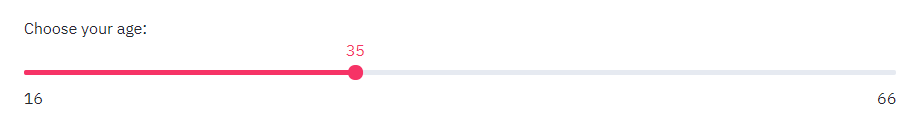

  • Slider
age = streamlit.slider("Choose your age: ", min_value=16,
                       max_value=66, value=35, step=1)

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\slider.png" description="" %}

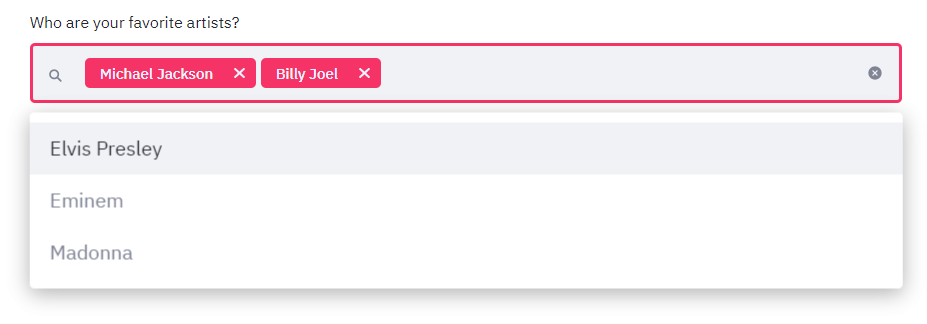

  • MultiSelect
artists = st.multiselect("Who are your favorite artists?",
                         ["Michael Jackson", "Elvis Presley",
                         "Eminem", "Billy Joel", "Madonna"])

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\artists.png" description="" %}

Caching

The problem with many dashboarding tools is that data is reloaded every time you select an option or switch between pages. Fortunately, Streamlit has an amazing option allowing you to cache the data and only run it if it has not been run before.

import pandas as pd
import streamlit as st

@st.cache
def load_data():
    df = pd.read_csv("your_data.csv")
    return df

# Will only run once if already cached
df = load_data()

The code above shows that you can cache any function that you create. This may include loading data, but also preprocessing data or training a complex model once.

Visualization

Streamlit supports many visualization libraries including: Matplotlib, Altair, Vega-Lite, Plotly, Bokeh, Deck.GL, and Graphviz. It even can load audio and video!

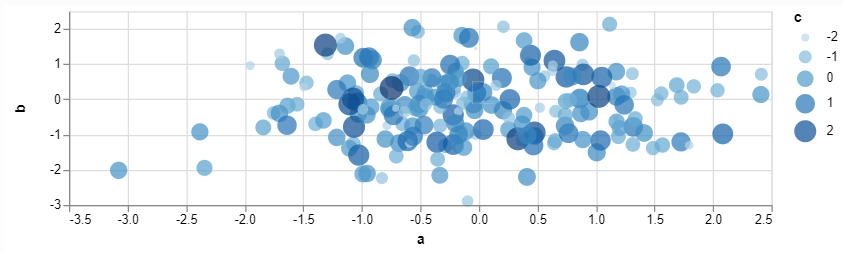

Below is a quick example of showing an Altair plot:

import pandas as pd
import numpy as np
import altair as alt
import streamlit as st

df = pd.DataFrame(np.random.randn(200, 3), columns=['a', 'b', 'c'])
c = alt.Chart(df).mark_circle().encode(x='a', y='b', size='c',
                                       color='c')
st.altair_chart(c, width=-1)

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\altair.png" description="" %}

Markdown

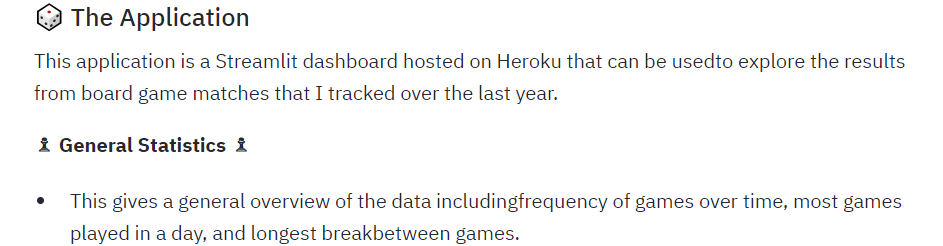

Personally, I am a big fan of markdown and its possibilities of creating nicely looking and REAMDEs. Luckily, we can generate markdown with only a single function:

import streamlit as st
st.markdown("### 🎲 The Application")
st.markdown("This application is a Streamlit dashboard hosted on Heroku that can be used"
            "to explore the results from board game matches that I tracked over the last year.")
st.markdown("**♟ General Statistics ♟**")
st.markdown("* This gives a general overview of the data including"
            "frequency of games over time, most games played in a day, and longest break"
            "between games.")

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\application.png" description="" %}

NOTE: Based on the commits in the dev branch st.latex seems to be coming shortly!

Write

The Write function is the swiss-army knife of the Streamlit commands. It behaves differently based on its input. For example, if you throw in a Matplotlib figure it will automatically show you that visualization.

A few examples: * write(string) : Prints the formatted Markdown string. * write(data_frame) : Displays the DataFrame as a table. * write(dict) : Displays dictionary in an interactive widget. * write(keras) : Displays a Keras model. * write(plotly_fig) : Displays a Plotly figure.

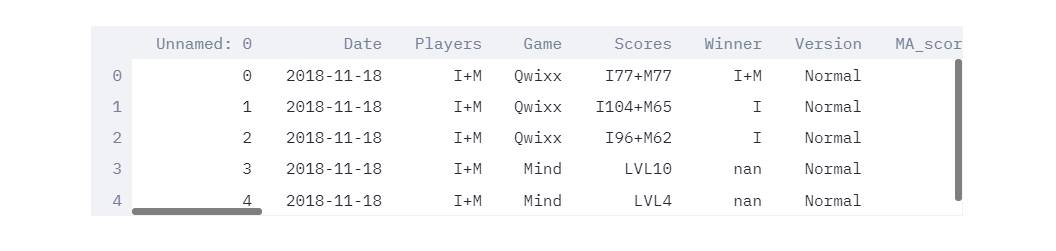

import streamlit as st
import pandas as pd

df = pd.read_csv("https://github.com/MaartenGr/boardgame/raw/master/files/boardgame_new.csv").head()
st.write(df)

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\df.png" description="" %}

You can find a full overview of its possibilities here.

4. The Application

To show how to deploy your application we first need to create a basic application. The example will be a simple demo that has two pages. On the homepage, it shows the data that we selected whereas the Exploration page allows you to visualize variables in an Altair plot.

The code below gives you a Selectbox on the sidebar which allows you to select a page. The data is cached so that it does not need to reload constantly.

from vega_datasets import data
import streamlit as st
import altair as alt

def main():
    df = load_data()
    page = st.sidebar.selectbox("Choose a page", ["Homepage", "Exploration"])

    if page == "Homepage":
        st.header("This is your data explorer.")
        st.write("Please select a page on the left.")
        st.write(df)
    elif page == "Exploration":
        st.title("Data Exploration")
        x_axis = st.selectbox("Choose a variable for the x-axis", df.columns, index=3)
        y_axis = st.selectbox("Choose a variable for the y-axis", df.columns, index=4)
        visualize_data(df, x_axis, y_axis)

@st.cache
def load_data():
    df = data.cars()
    return df

def visualize_data(df, x_axis, y_axis):
    graph = alt.Chart(df).mark_circle(size=60).encode(
        x=x_axis,
        y=y_axis,
        color='Origin',
        tooltip=['Name', 'Origin', 'Horsepower', 'Miles_per_Gallon']
    ).interactive()

    st.write(graph)

if __name__ == "__main__":
    main()

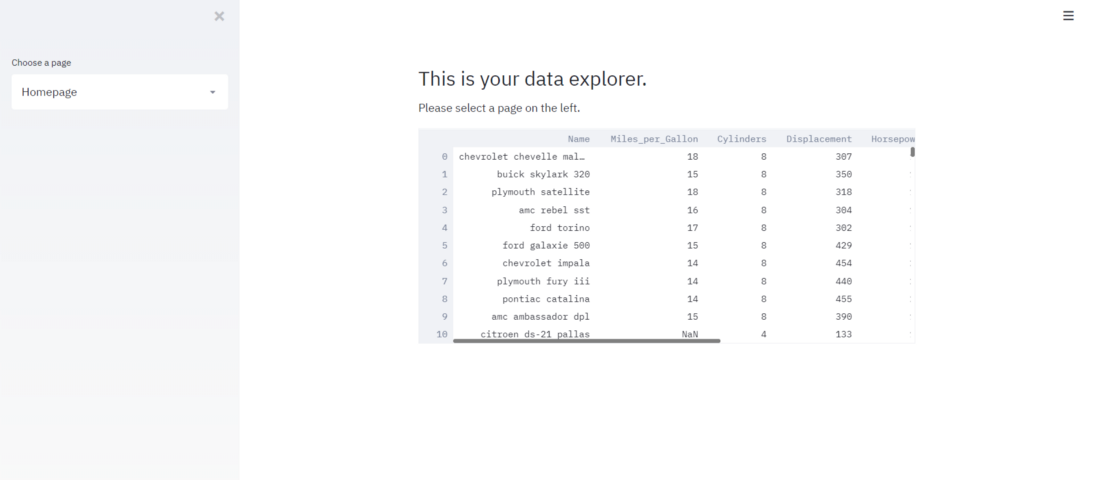

Running the code streamlit run app.py will show you the following page:

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\app.png" description="" %}

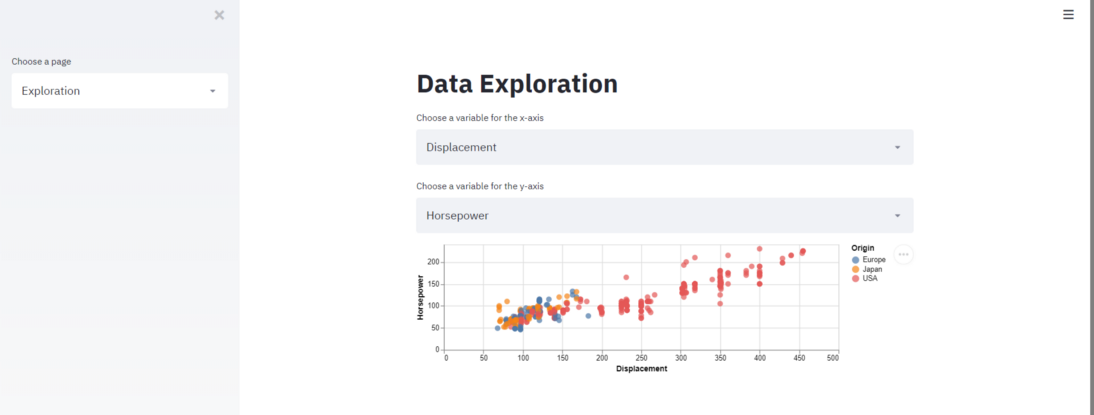

Selecting the page Exploration will show you the following visualization:

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\exploration.png" description="" %}

5. Heroku deployment

Now that we have our application it would be nice if we could host it online somewhere. That way, you can demonstrate the application that you made to others. We are going to do this by deploying it to Heroku, which is a platform as a service (PaaS) which can be used to run applications fully in the cloud.

First, make sure you have the following files in your application folder:

.
├── app.py
├── requirements.txt
├── setup.sh
└── Procfile

You can find all these files in the repository here.

Create Account

To deploy the app you will first need to create an account on Heroku here. Do not worry, hosting your application is entirely Free!

The main disadvantage of using a free account is that the website will go down if it has not been visited for more than half an hour. However, it will restart the moment you open the site.

Install Heroku Command Line Interface

Next, you will need to install the Heroku Command Line Interface (CLI) here. You will use this to manage your application, run it locally, view its logs, and much more.

Login to Heroku

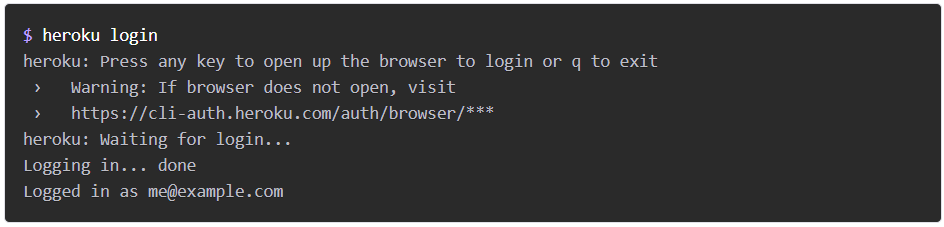

After doing this, open your cmd.exe and cd to the application folder. Then, log in to Heroku with heroku login. You will be redirected to a login screen on your preferred browser.

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\heroku.png" description="" %}

Deploy the App

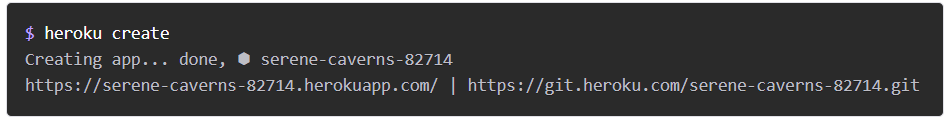

Finally, while having your cmd open in your application folder, first run heroku create to create a Heroku instance:

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\heroku1.png" description="" %}

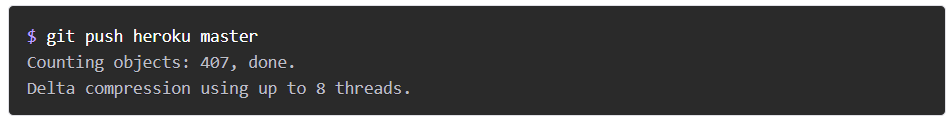

Then, push all your code to that instance with git push heroku master:

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\heroku2.png" description="" %}

This will create a Heroku instance and push all code in your application folder to that instance. Now, the app should be deployed.

Run heroku ps:scale web=1 to ensure that at least one instance of the app is running:

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\heroku3.png" description="" %}

Finally, open your application with heroku open which will visit the app using your preferred browser at the URL generated by its app name:

{% include markdown_image.html url="\assets\images\posts\2019-11-11-streamlit\heroku4.png" description="" %}

All code can be found here.
